Regular model incinerator for market with burning rate from 10kgs to 500kgs per hour and we always proposal customer send us their require details, like waste material, local site fuel and power supply, incinerator operation time, etc, so we can proposal right model or custom made with different structure or dimensions.
Incinerator Model YD-100 is a middle scale incineration machine for many different usage: for a middle hospital sickbed below 500 units, for all small or big size family pets (like Alaskan Malamute Dog), for community Municipal Solid Waste Incineration, etc. The primary combustion chamber volume is 1200Liters (1.2m3) and use diesel oil or natural gas fuel burner original from Italy.

Special offer in Sept 2021 only, How much cost 30kgs to 50kgs per hour capacity medical waste incinerator, average 200 beded hospital?

Posted on 2021-08-252021-08-25 by oil-fired-incinerator

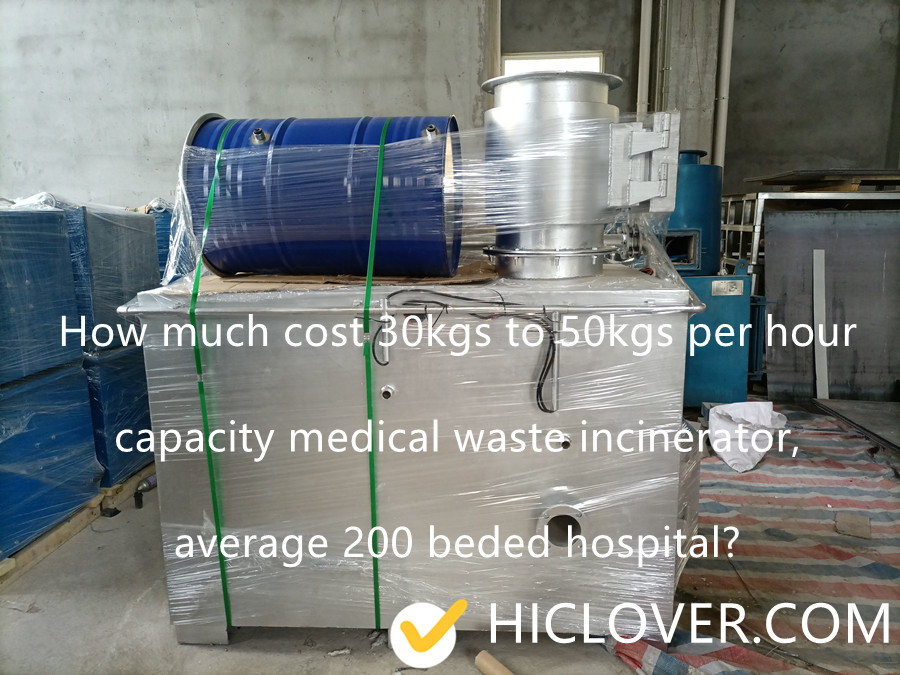

How much cost 30kgs to 50kgs per hour capacity medical waste incinerator, average 200 beded hospital?

small scale hospital waste incinerator, for small hospital, for Covid 19 waste and PPE waste 2021

Special offer in Sept 2021 only, $7000usd per set(Diesel Oil Fuel), EXW factory term. Contact with us with further information

Incinerator Items/Model	HICLOVER TS30(PLC)
Burn Rate (Average)	30-50 kg/hour
Feed Capacity(Average)	60kg/feeding
Control Mode	PLC Automatic
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual
Voltage	220V 2P
Power	0.5Kw
Burner Type	Italy Brand
Oil Consumption (kg/hour)	12
Gas Consumption (m3/hour)	9.8–20
Temperature Monitor	Yes
Temperature Thermometer	Corundum Probe Tube, 1400℃Rate.
Temperature Protection	Yes
Automatic Cooling	Yes
Automatic False Alarm	Yes
System Testing Model	Yes
Time Setting	Yes
Progress Display Bar	LCD Display
Oil Tank	200L
Oil Tank Stand	190cm Height
Liquid level Display	Yes
Feeding Door	55x50cm
Chimney	5Meter
Chimney Type	Stainless Steel 304
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1300℃
Residency Time	2.0 Sec.
Gross Weight	3000kg
External Dimensions	175x120x140cm
1st. Chamber Composition Hot Face	Thickness: ≥115 mm
	55% of Al203
	1750°C Grade
2nd. Chamber Composition Hot Face	Thickness: ≥200 mm
	75% of Al203
	1790°C Grade
Chamber Cold Face Material	High Rate Refractory Ceramic Fiber
Other Parts Hot Face Refractory	Heavy Duty with steel fiber
Burner operation	Automatic On/Off
Dry Scrubber	Including
Wet Scrubber	Optional
Top Loading Door	Optional
Paint for outside face	250°C Grade
Sealing Material	Refractory Ceramic Fiber
Upgrade Containerized Mobile Type	Optional
CE Certificate	CE(2006/42/EC,2014/30/EU
ISO Certificate	ISO9001:2015
High-tech Enterprise Certificate	Yes

Biomedical waste management ppt

Posted on 2021-02-232021-02-23 by oil-fired-incinerator

Items/Model

TS50(PLC)


Principle

Medical Waste Incineration,dual chamber incinerator

Burn Rate

50-100 kg/hour

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

560L

Internal Dimensions

100x80x70cm

Secondary Chamber

280L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

0.7Kw

Oil Consumption (kg/hour)

average 16.9

Gas Consumption (m3/hour)

average 20.2

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

100L

Feed Door

70x55cm

Chimney

5Meter

Chimney Type

Steel

1st. Chamber Temperature

800℃–1000℃

2nd. Chamber Temperature

1000℃-1200℃

Residency Time

2.0 Sec.

Gross Weight

4500kg

External Dimensions

230x130x155cm

Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

HICLOVER Incinerator/Parts Range	Main Feature
Medical Waste Incinerators	HICLOVER 10-500kgs/Hr.Double Combustion Chambers
Single Combustion Chamber	Small, Cheap,10-20kgs/Hr.
Three Combustion Chambers(Optional)	3 Chambers for high risk waste
Pet Cremation Equipment	For Pet(small/big) Cremation Business
Animal Incineration Equipment	For other animal incineration

Items/Model	TS100(PLC)	TS150(PLC)	TS300(PLC)	TS500(PLC)
Burn Rate (Average)	100 kg/hour	150 kg/hour	300 kg/hour	500 kg/hour
Control Mode	PLC Auto.	PLC Auto.	PLC Auto.	PLC Auto.
Combustion Chamber	1200L	1500L	2000L	3000L
Internal Dimensions	120x100x100cm	150x100x100cm	170x120x100cm	210x120x120cm
Secondary Chamber	600L	750L	1000L	1500L
Smoke Filter Chamber	Dry Scrubber	Dry Scrubber	Dry Scrubber	Dry Scrubber
Feed Mode	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V
Power	1.38Kw	1.69Kw	2.57Kw	4.88Kw
Diesel Oil Consumption (kg/hour)	Ave.20.4	Ave.24.2	Ave.33	Ave.44
Natural Gas Consumption (m3n/hour)	Ave.24.5	Ave.29	Ave.39.6	Ave.52.8
Temperature Monitor	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes
Oil Tank	200L	300L	500L	500L
Chimney	10Meter	10Meter	14Meter	14Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	6000kg	8500kg	11000kg	16000kg
External Dimensions	260x150x180cm	300x160x190cm	400x210x300cm	450x210x300cm

No	Description	Specification
1	Type	Dual Chamber (Primary + Secondary Type Controlled Air Pyro Lytic Biomedical Waste Incinerator with Chimney Arrangement	yes
2	Incineration Capacity	>50 Kg. per hour	Yes, 50-100kgs/hour
3	Duration of Use	As per operational conditions	Average 10years
4	Number of Chambers	02 No.s	yes
4	Number of Burners per Chamber	01 No.s	yes
5	Total burners per incinerator	02 No.s	yes
6	Primary Chamber Operation Temperature	Max. 900 Degree Celsius	800-1000 Degree Celsius
7	Secondary Temperature Operation Temperature	Max. 1075 Degree Celsius	1000-1200 Degree Celsius
7	Design Temperature for both chambers	Max. 1500 Degree Celsius	1750 Degree Celsius
8	Incinerator Efficiency	98-99 %	yes
9	Refractory Materials	High Alumina Refractory	High Alumina Refractory and firebrick
10	Refractory Type	Castable type	yes
11	Ash Removal	Manual Removal Drawer Tray	yes
12	Material of Construction of Chamber	IS 2062	Q235, same as IS2062
13	Type of Burner Used	Fully Automated Electrically operated burner with Head with photo cell for flame supervision Nozzle and Electrode	yes
13	Type of Burner Used	Connection hoses , Ignitor , Pump Fan & Cabling System	yes
14	Qty.	01 No.
15	Power	230 / 440 V as per availability at end user	220-240V
16	Electrical Cabling	Within battery limits	Standard 3Meter
17	Refractory
18	Type	Castable Type	yes
19	Anchor Fasteners	AISI 316	Firebrick made,none anchors. S.S fiber 446
20	Coating on Anchors	Parafin	none
21	Alumina Percentage	40-60 %	Above 60%
22	Density	2.1 g/Cubic cm	3-3.5 g/Cubic cm
23	Service Temperature Max.	1500 Deg. Celsius	1750 Deg. Celsius
	Insulating Castable
24	Type	Castable	High alumina ceramic fiber Insulation
25	CCS at 110 Degree	35-45 Kg /Sq. Cm.	None parameter
26	Grain Size	5 mm	None parameter
27	Density	1.2 gm / cm3	220kg/m3
28	Service Temperature	1350 Degree C	1260 Degree C
	Control Panel
29	Degree of Ingress Protection	IP 55	yes
30	Panel MOC	SS 304	yes
31	Panel	Cabinet with Observation Glass and PLC Programmer	yes
32	Chimney
33	MOC	IS 2062	yes
34	Height	As per requirement	5 meter
35 36	Total Space Requirement Completed with all Civil and Electrical	Maximum 5 Mtr. X 5 Mtr. Work	yes

CE Certification Pass

HICLOVER Solution for Fighting COVID-19 with CE Certification.

1. Medical Waste Incinerator(Containerized Mobile Incinerator｜Top Loading Incinerator)

2. Auto Roll Air Filter for Clean Room

2021-02-23

Top Feeding Door Solid Waste Incinerators HICLOVER

Posted on 2020-08-072020-08-07 by oil-fired-incinerator

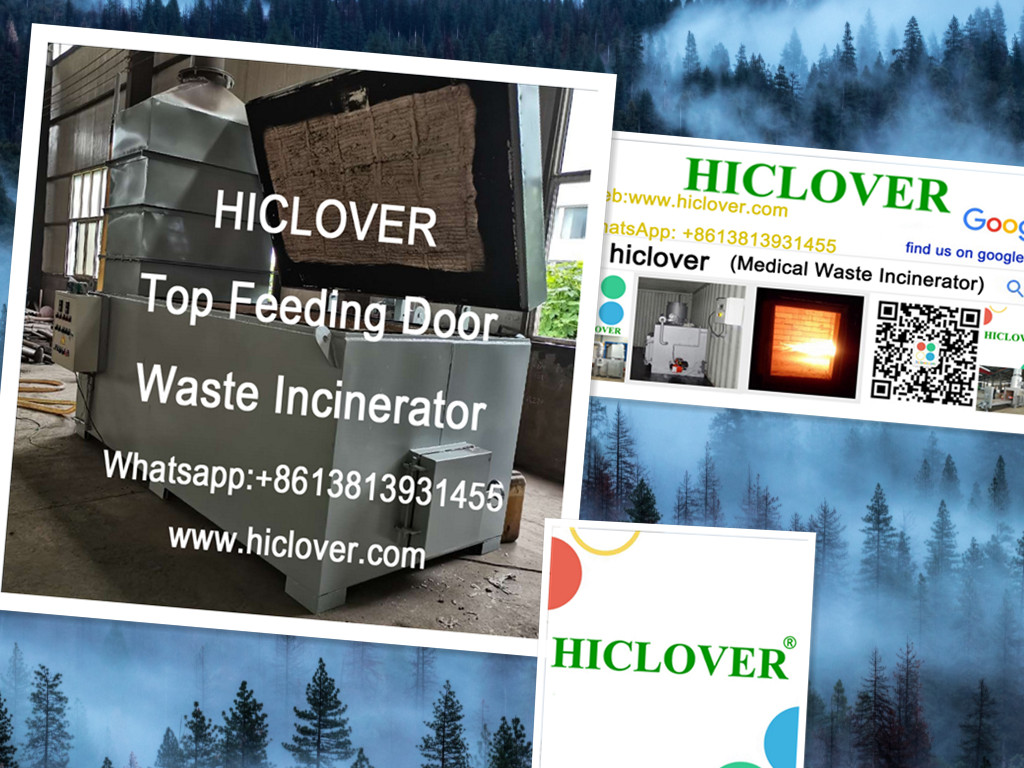

HICLOVER Top Feeding Door Waste Incinerators

▲▲▲Large Feeding Door

▲▲▲Better for Animal Waste Cremation

▲▲▲HICLOVER Brand Section

***Primary Combustion Chamber

***Secondary Combustion Chamber

***Smoke Filter Chamber

***Optional Wet Scrubber System(1 section or 3 sections)

Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

Items Side Loading Door Top Loading Door

Cost Cheap High cost

Manufacture Tech. Easy A litter difficult

Safty safe safer

Incinerator Shape L/ I L

Loading manual big door can be by Forklift

Land occupation small big

Ash door same with feeding door or alone alone

market share Most-CHINA/USA/INDIA Few- UK/USA

Dooring open type Manual Pry bar/Hydraulic pressure

Dooring Open size small big

Better for medical bag waste animal waste

open when burning safer, can feed waste, few smoke not safe, cannot feed waste, most smoke

parts of an incinerator

physical method of disposing hazardous chemical waste

portable incinerators types

proper ways of waste disposal in the community

questionnaire to ask about incinerators for collection of data

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-08-07

Incinerator YD-150 with Stainless Steel Wet scrubber-Cooling Spray tower

Posted on 2020-07-142020-07-13 by oil-fired-incinerator

Model

YD-150

Burning Rate

Average 150 kgs/hour

Feed Capacity

Average 300 kgs/feeding

Primary Combustion Chamber

1500 Liters

Secondary Combustion Chamber

500 Liters

Mix Combustion Chamber

Yes

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V/380V

Power

1.03Kw

Fuel Type

Diesel Oil/ Natural Gas/LPG

Burner

Italy Original

Oil Consumption (Diesel Oil)

17–36 kg/hour

Gas Consumption (Natural Gas)

11–36.7 m3/hour

Internal Dimensions

150 x 100 x 96cm (primary chamber)

External Dimensions

240 x 170 x 380cm (without chimney)

Temperature Monitor

Yes

Oil Tank Capacity(if oil fuel)

300 Liters

Door Opening

59 x 81cm

Chimney Length

10.0 Meters

Chimney Type

Stainless Steel

Equipment Gross Weight

7500 kgs

before start the 2nd burner, full close all air valve on the 1st chamber. other operation keep same.

reason: at the first 10-20 min burnning the plactic waste, deflagration combustion in the chamber.

after 10-20 min, gradually increase air injection by air valve on the 1st chamber.

meanwhile, proposal 20-30 min burnning of the 1st chamber, stop the 1st burner(stop fire only, the fan inside the burner

still working), let the plastic burn itself(Spontaneous combustion) to save diesel oil.

a small waste to energy project to turn municipal solid waste

Model	YD-150
Main Product List	Primary Combustion Chamber
	Secondary Combustion Chamber
	Mix-Combustion Chamber
	Smoke Filter Chamber(Dry Scrubber)
	Incinerator Control Case(PLC Auto.Type)
	Chimney:10.0Meters *(upgrade to Stainless Steel, free cost)
	Italy oil/gas burner: 02 sets
	Oil Tank (if oil fuel): 300Liters
	Optional Part: Stainless Steel Wet scrubber(Cooling Spray tower)

into electricity. The project is to cater for a local council with a population of around 60,000 people and will serve as a

pilot project. If project is successful than other such plants will be installed in other towns and villages. The villages

will all cater for the MSW in their locality instead of a central large incineration plant to cate for the whole county.for a 7 ton per

hour plant on turn-key basis with your best price and delivery including full technical specifications, literature, drawings

and best export price.

Provided you can offer a good solution there is a chance of selling many more such plants for the local councils of the same

country, so this is an excellent chance for you to join forces with our company for market penetration with your products in

Europe.

1. TS100 model with dry scrubber system

2. YD150 with a wet scrubber system

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

Tel: +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

2020-07-14

Melt blown Production Line 400mm and 1600mm and ES Fiber Production Line and N95 Mask Machine and Disposable Mask Machine

Posted on 2020-04-202020-04-20 by oil-fired-incinerator

1. N95 and Disposable Mask Machine

2. 400mm and 1600mm Melt blown Production Line

3. ES Fiber Production Line

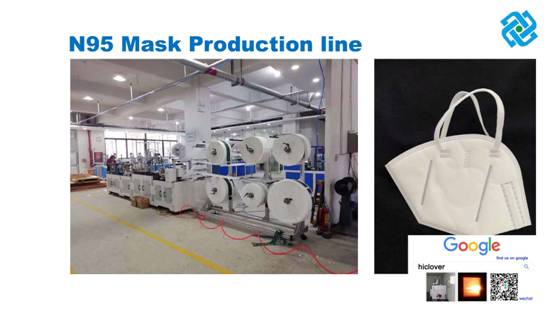

N95 Face Mask Machine Production Line

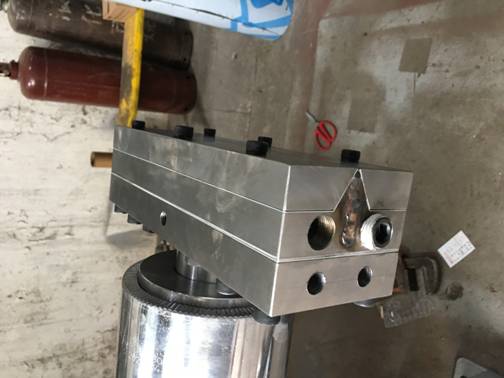

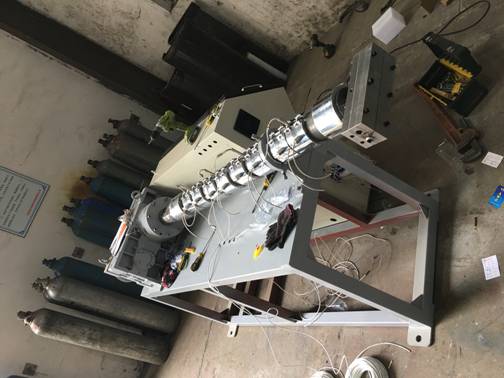

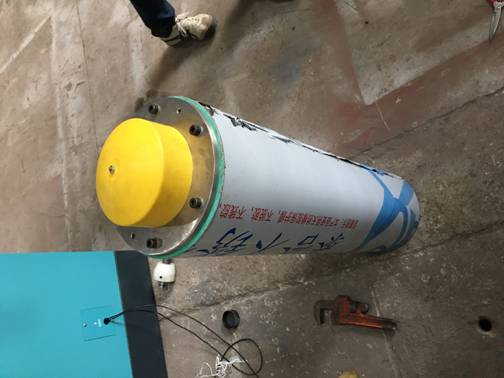

Melt blown Production Line

A.)Optional Capacity: 1600mm

Efficiency: 95-97%

FOB Term Price: USD per set

Price Valid: 5days.

Ave.60 Days ready for shipping.

In stock Price: USD per set

B.)Optional Capacity: 400mm

Efficiency: 40-50% .

FOB Term Price: USD per set

Price Valid: 5days.

Ave.20 Days ready for shipping.

Payment: TT 70% In advance, TT 30% before leave factory

Shipping: 1*20′ container per set, Ave. 2000Kgs.

Main Parts: Extruder, mold, winder, oven, ultrasonic

Daily Capacity：100-150Kgs/24Hours

Screw extruder：100-150Kgs

Motor power: 15KW frequency conversion speed regulation
Reducer speed ratio: 1:10 or 1:16
Screw length to diameter ratio: 30: 1
Screw diameter: 50mm

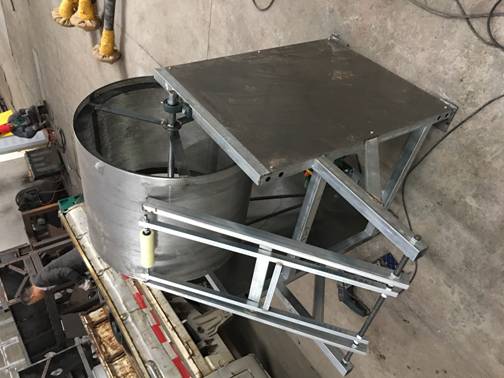

Winding machine diameter: ￡ 630mm
Winding machine drive motor power: 0.55kw
Speed ratio of winder drive reducer (if any): 1:71
Air heater power: 15kw

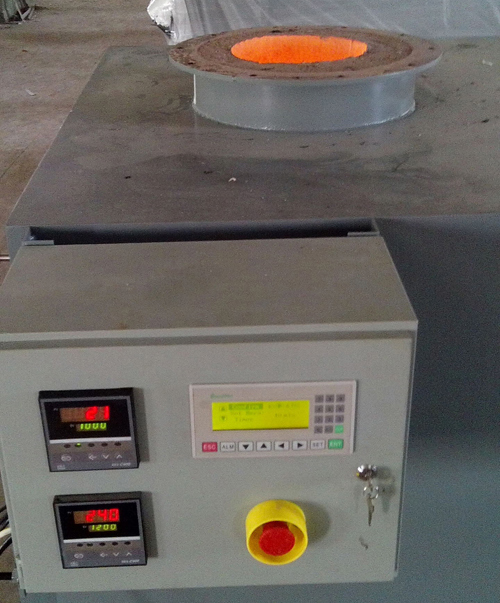

Power of vacuum calciner: 12kw
The size of vacuum calciner: 500 × 300 × 200

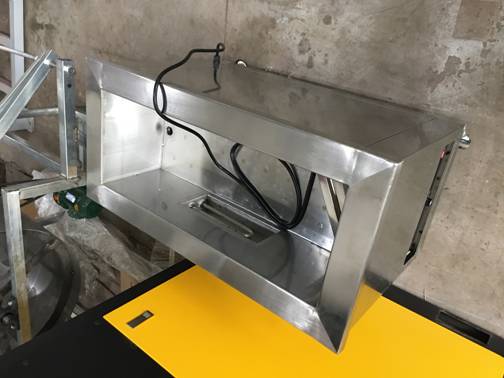

Ultrasonic power: 1800, frequency 28kHZ
Ultrasonic sink size: 800 × 300 × 250

HICLOVER – Medical Environmental

WWW.HICLOVER.COM

Waste Incinerators

Medical Waste Incinerator

Pet Animal Cremation

Solid Waste Incinerator

Tel: +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com

Nanjing Clover Medical Technology Co.,Ltd.

2020-04-20
